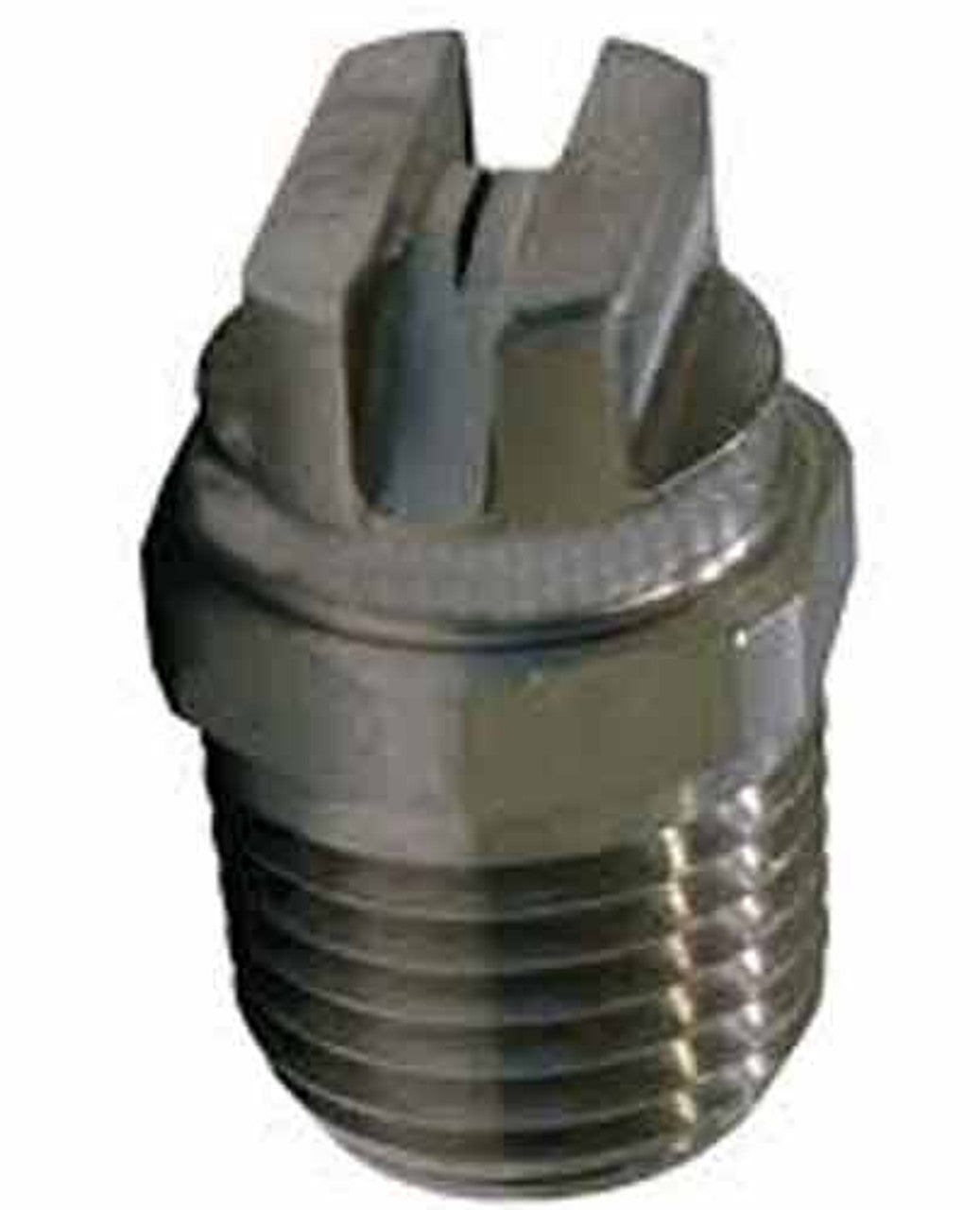

Reliable 9503 Stainless Steel VeeJet Tip for Wide, Even Spray
The H52 9503 Stainless Steel VeeJet delivers consistent coverage and fluid control for cleaning, quenching, and cooling. Featuring a 95° flat fan spray and 1/4" MNPT threads, this durable spray tip is ideal for tough environments and industrial wash systems.
🔧 Features
- — 1/4" MNPT male threaded connection
- — 9503 orifice for wider spray volume
- — 95° spray angle with flat fan distribution
- — Stainless steel construction resists wear and corrosion
- — Compact 0.906" overall length
✅ Advantages
- — Ensures even, repeatable spray output
- — Withstands pressure ranges from 5 to 500 PSI
- — Reduces water waste with tapered coverage
- — Resists chemical and heat breakdown in harsh use
🎯 Benefits
- — Improves cleaning and cooling performance
- — Minimizes downtime due to nozzle wear
- — Boosts system efficiency in spray-based setups
- — Compatible with most 1/4" spray assemblies
🛠 How to Use
Thread directly into compatible 1/4" MNPT ports. Apply thread sealant or PTFE tape to prevent leaks. Ideal for use in systems requiring a tapered-edge spray with wider output volume.
📅 When to Use
Use in spray wash bays, cooling headers, or misting systems where slightly higher flow than a 9502 is needed. Replace stainless tips annually to maintain optimal spray patterns.
Upgrade to stainless—maximize spray coverage with precision and power.
📋 Technical Specs
- — Product Type: Flat Spray Tip
- — Series: H1/4VV
- — Orifice Size: 9503
- — Spray Angle: 95°
- — Spray Pattern: Tapered Edge
- — Material: Stainless Steel
- — Inlet: 1/4" MNPT
- — Length: 0.906"
- — Pressure Range: 5 – 500 PSI
- — Flow Rate: approx. 0.11 – 0.85 GPM
- — Weight: 0.035 lbs
