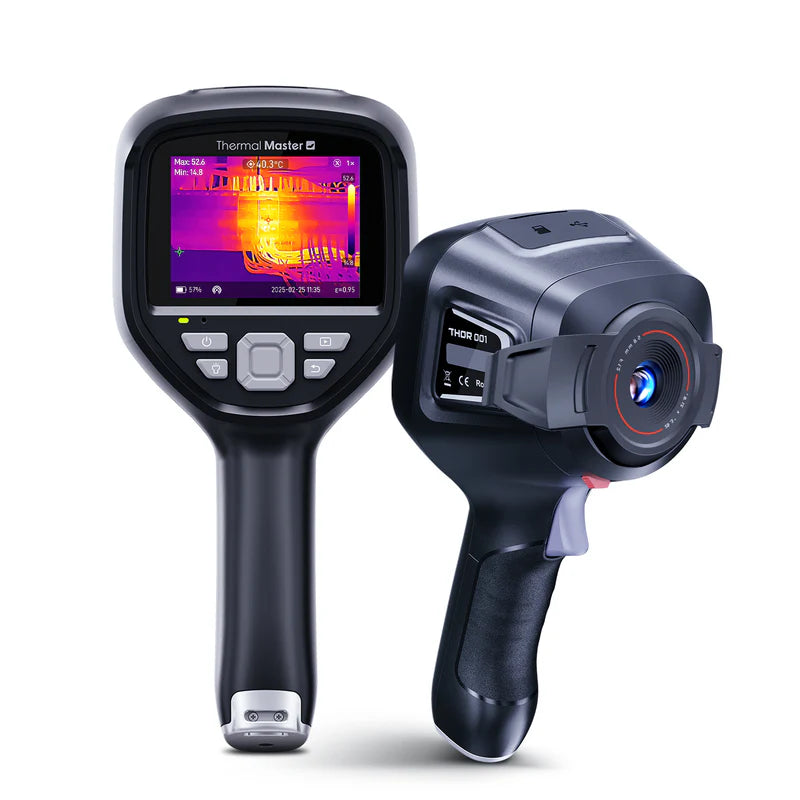

Thor 001 features an optional macro lens for detailed PCB inspection. This is a versatile tools, suitable for home inspection, electrical diagnostics, and automotive repair.

• Multiple Inspection Scenarios: Suitable for HVAC, electrical, and industrial diagnostics, heat loss analysis, and electrical fault detection.

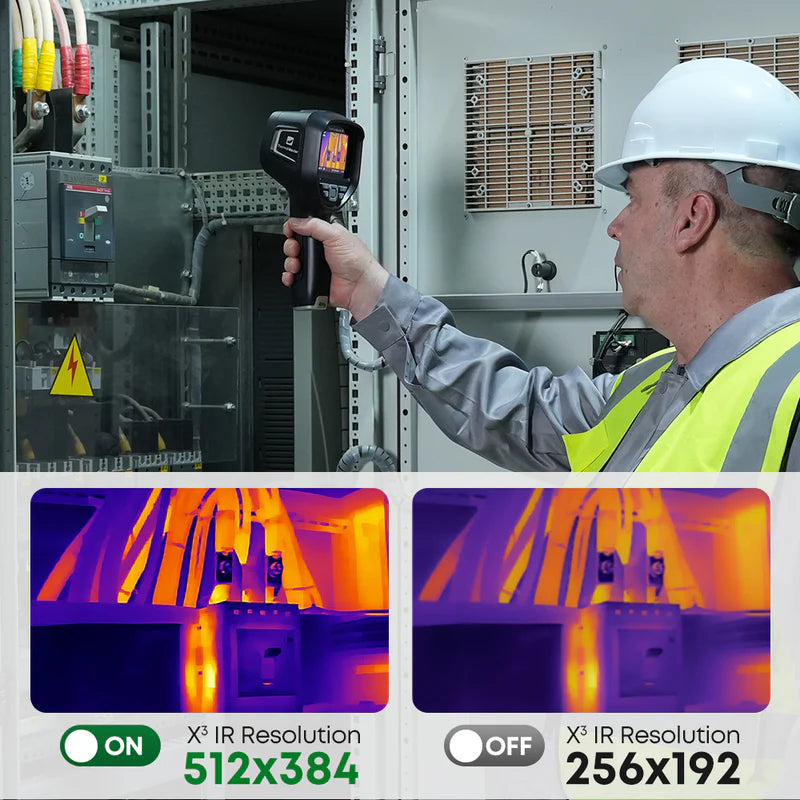

• High Thermal Imaging Performance: Built on a 256×192 infrared sensor with AI ISP super-resolution upscaling to 512×384 for clearer thermal detail and accurate fault identification.

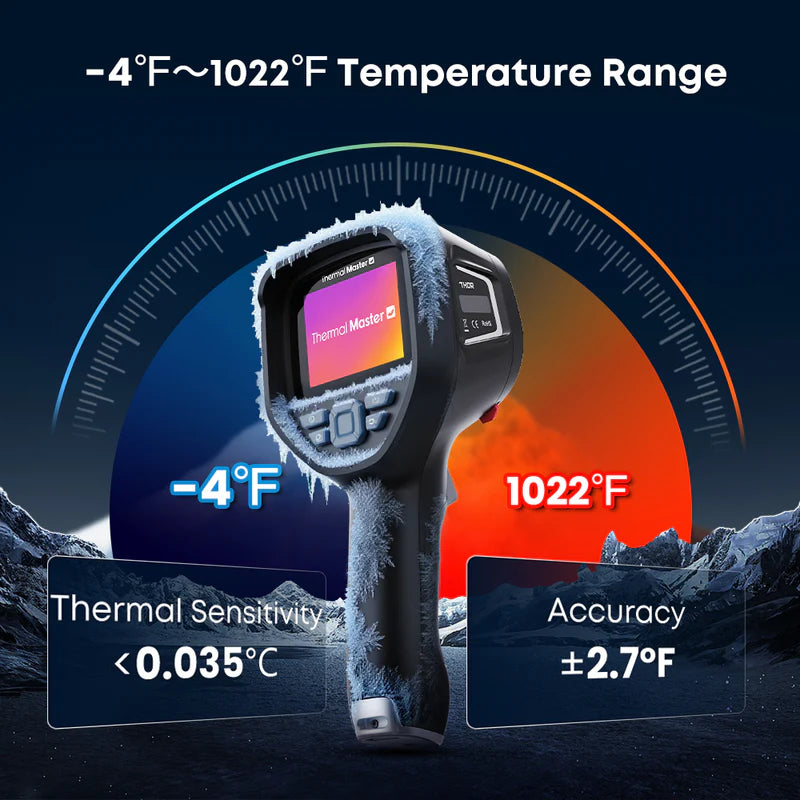

• Temperature Measurement Range: Supports temperature measurement from –20℃ to 550℃ (–4℉ to 1022℉) with selectable low, high, and auto measurement modes.
• Fixed Focus Thermal Imaging: Fixed-focus optics with a 0.3 m minimum focus distance and a 40° × 30° field of view for stable mid-range inspection.

• Powered by High-Performance Hardware: High-sensitivity thermal detector (NETD <35 mK on THOR001, <40 mK on THOR002), 2-meter drop-tested housing, 25Hz fresh rate and up to 10 hours of operation.
• Multi-Function Temperature Analysis: Includes emissivity, distance, and ambient compensation, isotherm analysis, temperature alarms, and shutter calibration.
• Adjustable Thermal Visualization: Multiple image modes, color palettes, and 2× / 4× digital zoom for flexible thermal viewing.

Specs:

• Model: THOR001 | THOR002
• Temperature Range:
• THOR001: ±1.5℃ or ±1.5% of the reading
  THOR002: ±2℃ or ±2% of the reading
• IR Resolution:256×192
• Super IR Resolution: 512×384
• Macro Lens: THOR001: ✔ THOR002: ×
• Lens Focal Length: 4.3mm
• Digital Zoom: 2/4×
• Display: 3.5 inch IPS（640x480）
• Point Measurement:
• THOR001: Center spot/Max/Min/6 Custom Spots/Temperature difference
• THOR002: Center spot/Max/Min/3
  Custom Spots/Temperature difference
• NETD/Thermal Sensitivity:
• THOR001: ＜35mk
• THOR002: ＜40mk

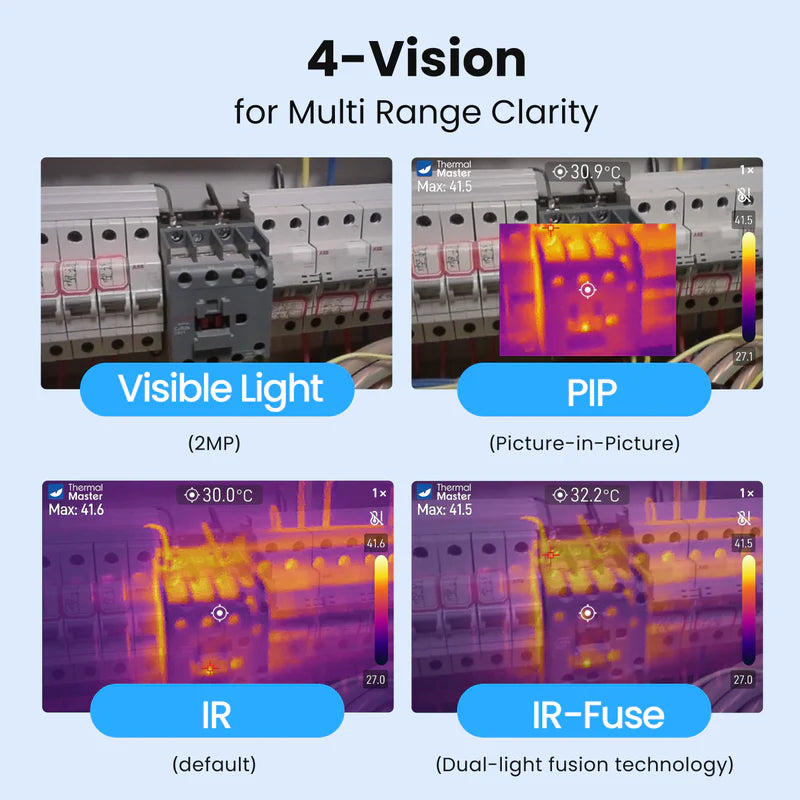

• Image Mode: Fusion, IR（default), PIP, Visual
• Digital Camera: 2MP

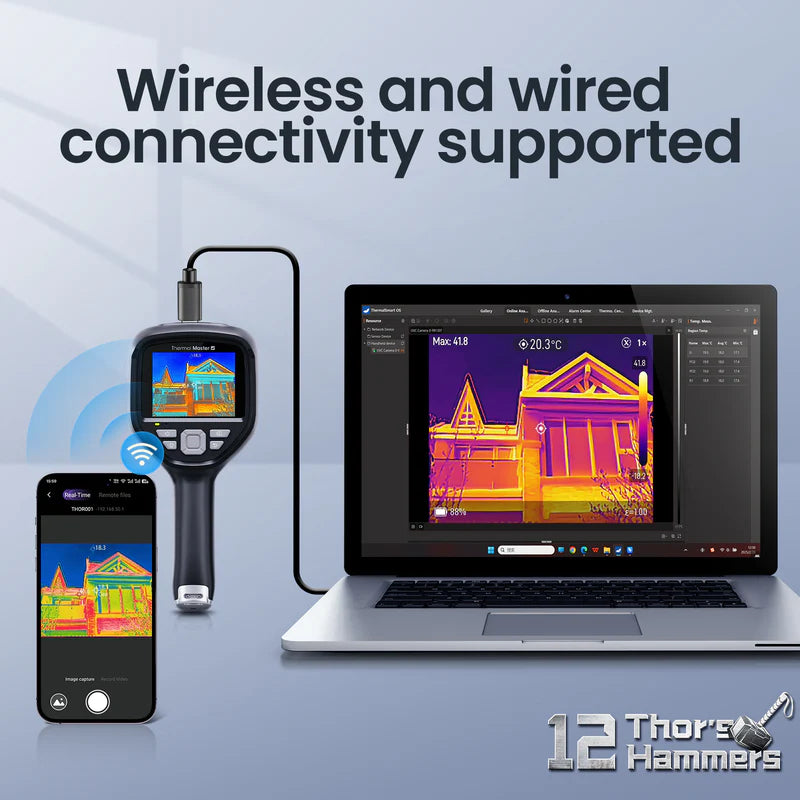

• Wireless: ✔
• PC-based Analysis Software: ✔
• Supports 13 languages (English by default)
• Laser Indicator: ✔
• Microphone: ✔
• Flash Shield: ✔
• Lens cap for protection: ✔
• Alloy Metal Base: ✔
• Razor X thermal technology: ✔
• Fresh rate: 25Hz
• FOV: 40°×30°
• IFOV: 2.79mrad
• Pixel Pitch: 12μm
• Focus Mode: Fixed focus
• Min Focus Distance:
• THOR001: 8cm
• THOR002: 30cm
• Fast Charge: 18W
• Battery: 5000mAh rechargeable lithium battery
• Charging Time: 4h
• Operating Time: 8h
