SS VeeJet Spray Tip – 1/8" MNPT Stainless Steel, 95° Flat Fan Pattern 9505
SS VeeJet Spray Tip – 1/8" MNPT Stainless Steel, 95° Flat Fan Pattern 9505
Available in stock (15)
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
High-Precision Stainless Steel Spray Tip for Efficient Coverage

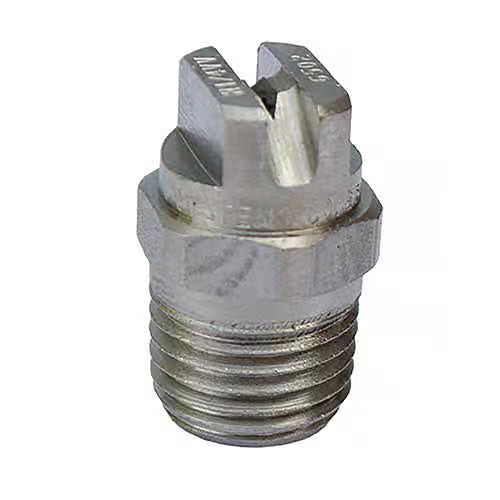

The Stainless Steel VeeJet Spray Tip delivers a consistent flat fan pattern with a specially tapered edge, ideal for wash systems, cooling, and industrial spray setups. This 1/8" MNPT nozzle provides a high-impact stream with even liquid distribution—perfect for reducing water usage while maintaining superior coverage across variable pressure applications.
🔧 Features
- — 303 stainless steel construction resists wear and corrosion
- — 1/8" MNPT inlet fits standard threaded spray assemblies
- — 95° spray angle provides wide, tapered-edge coverage
- — Flat fan pattern ideal for uniform washing and cooling
- — Compact body for tight installation areas (0.875" length)
✅ Advantages
- — Improves cleaning time with high-impact spray delivery
- — Reduces water consumption with efficient patterning
- — Compatible with manifold and header systems
- — Resists chemical and pressure-related damage
🎯 Benefits
- — Delivers faster, cleaner results with less resource use
- — Performs reliably in harsh, high-pressure environments
- — Ideal for both continuous and pulsed spray setups
- — Supports multiple applications from cleaning to fire safety
🛠 How to Use
Thread the nozzle into a compatible 1/8" MNPT fitting using thread sealant. Orient the fan direction as needed for targeted coverage. Adjust pressure between 5–500 PSI for optimal pattern width and impact.
📅 When to Use
Recommended for use in spray washing, cooling, dust suppression, fire control, and gas scrubbing systems where wide-angle, flat fan spray is required.
Upgrade your system with reliable, efficient stainless steel spray performance.
📋 Technical Specs
- — Model: H-VV Size 5
- — Inlet: 1/8" MNPT
- — Material: 303 Stainless Steel
- — Spray Pattern: Flat Fan, Tapered Edge
- — Spray Angle: 95°
- — Pressure Range: 5 – 500 PSI
- — Length: 0.875"
- — Hex Size: 0.5"
- — Common Uses: Washing, cooling, dust control, fire safety
