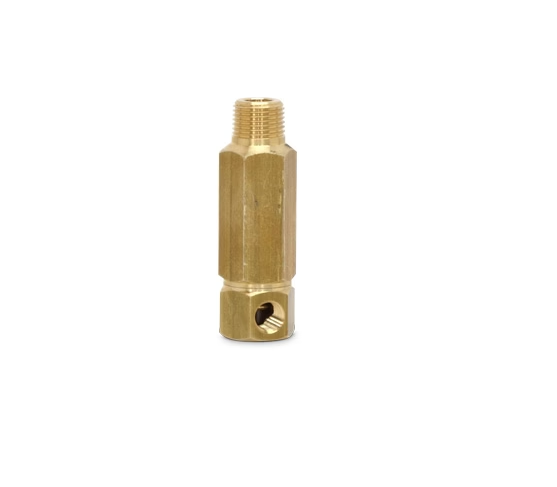

Cat Pumps 7177 Brass Thermal Valve 190 degrees 1/2"

The CAT Pumps 7177 Thermal Valve is designed to eliminate heat build-up in closed loop pumping systems. The valve is mounted in the bypass line of the pressure regulating device when the by-pass liquid is being recirculated to the inlet of the pump. This is a cost-effective way to protect pumps from excessive heat.

Specifications:

• Maximum Flow Rate: 25 GPM (95 liters per minute)

• Maximum Pressure: 125 PSI

• Inlet Port Size: 1/2" male NPT

• Discharge Port Size: 1/2" male NPT

• Material: Brass

• Maximum Temperature: 190° Fahrenheit
