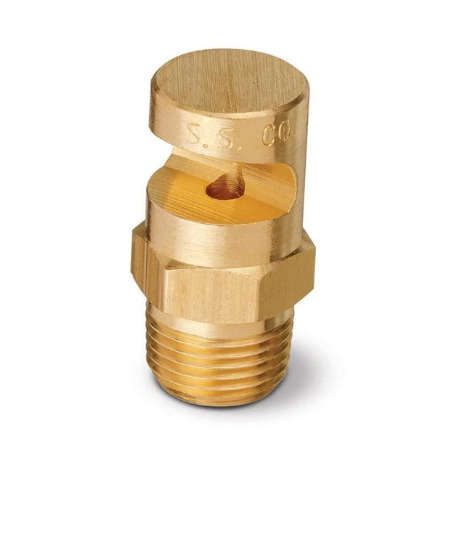

1/8K-1.5 Brass Flat Spray Tip – Wide Angle Tapered Edge Nozzle

Wide-Angle Flat Spray Tip for Even, Controlled Coverage

1/8K-1.5 Brass Flat Spray Tip delivers a tapered edge, deflected flat fan spray that’s ideal for carpet, upholstery, and surface rinsing. Designed for mounting in a horizontal orientation, this tip ensures uniform coverage without heavy edges. The protected orifice minimizes clogging and extends performance in demanding cleaning environments.

🔧 Features

• — 1/8" male pipe thread (MPT) connection
• — Flat fan spray pattern with deflection angle design
• — Tapered edge for consistent, overlap-free spray
• — Brass construction for corrosion resistance and cost-efficiency

✅ Advantages

• — Reduces uneven cleaning by preventing edge streaking
• — Improves chemical delivery and temperature control
• — Supports wide spray coverage at low to medium pressure
• — Compatible with most upholstery and carpet cleaning tools

🎯 Benefits

• — Reliable for flood extraction and fabric surface cleaning
• — Durable yet replaceable—ideal for semi-annual rotation
• — Efficient spray pattern helps control chemical draw
• — Easy to install with standard 1/8" fittings

🛠 How to Use

Thread the nozzle into a compatible tool with a 1/8" MPT port. Align the angle for proper fan coverage and operate between 7–60 PSI for optimal performance. Replace every 6 months in regular use to maintain even spray and heat control.

📅 When to Use

Use in carpet wands, upholstery tools, and other spray systems where wide fan coverage and even chemical application are essential. Especially useful in applications where the nozzle must be horizontally mounted.

In stock — restore even spray coverage and cleaning power with this tapered-edge brass jet.

📋 Technical Specs

• — Part Number: 1/8K-1.5
• — Material: Brass
• — Spray Pattern: Tapered Edge, Flat Fan
• — Spray Angle: 73° / 125°
• — Flow Rate: 0.13 – 0.37 GPM
• — Connection: 1/8" Male NPT
• — Pressure Range: 7 – 60 PSI
• — Length: 1.219 in
• — Weight: 0.025 lbs
