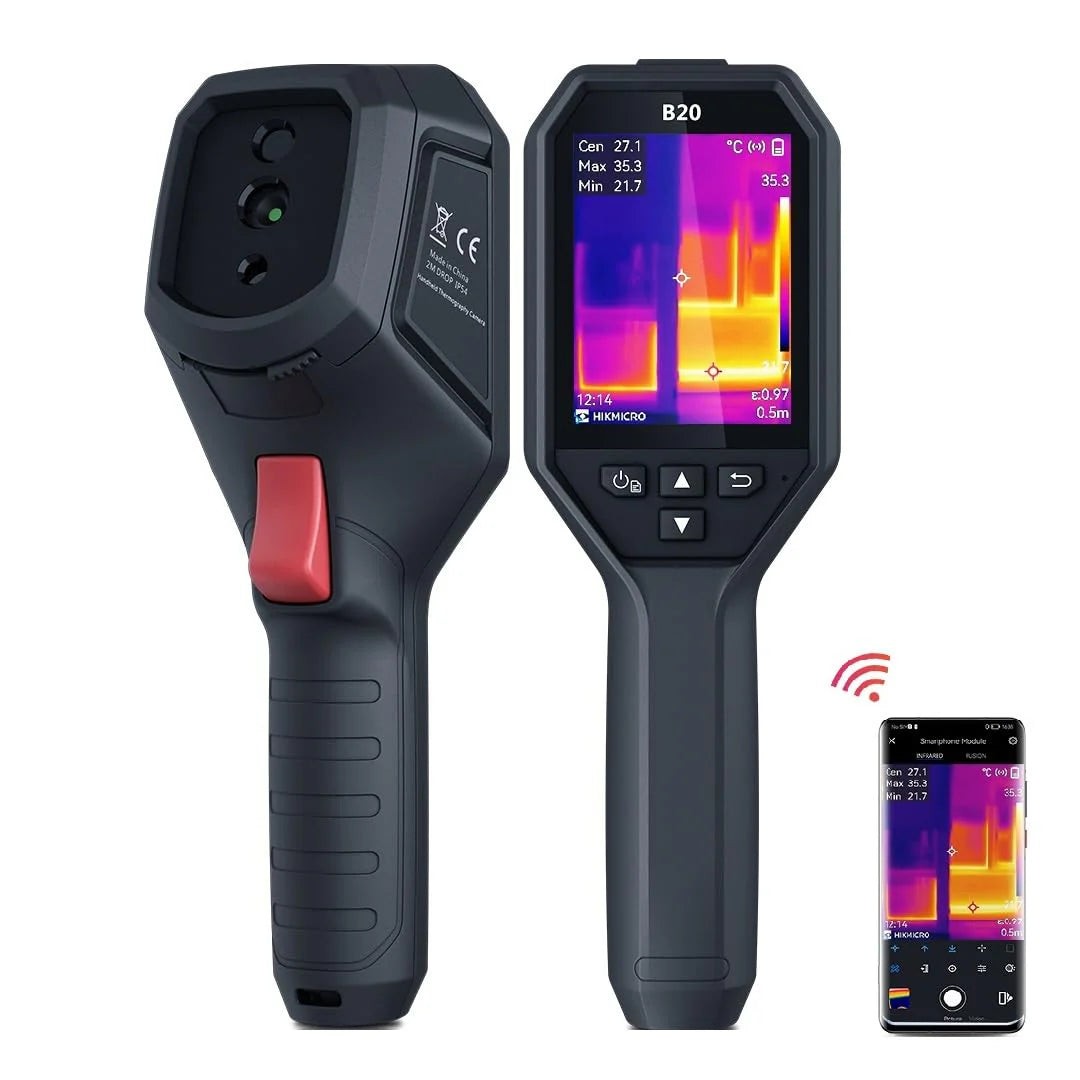

Professional-Grade Thermal Imaging in a Compact Body
The HIKMICRO B20 offers a powerful blend of portability, high thermal resolution, and advanced diagnostics. Designed for HVAC techs, electricians, and inspectors, this handheld device delivers precise thermal data with a 256×192 sensor, built-in Wi-Fi, and a rugged form factor ready for field use. Whether identifying heat loss, electrical faults, or insulation breakdowns, the B20 gets the job done—fast.
🔧 Features
- — 256×192 thermal sensor with 49,152 pixels
- — Wide temperature detection: -4°F to 1022°F (-20°C to 550°C)
- — 3.2" LCD touchscreen with intuitive interface

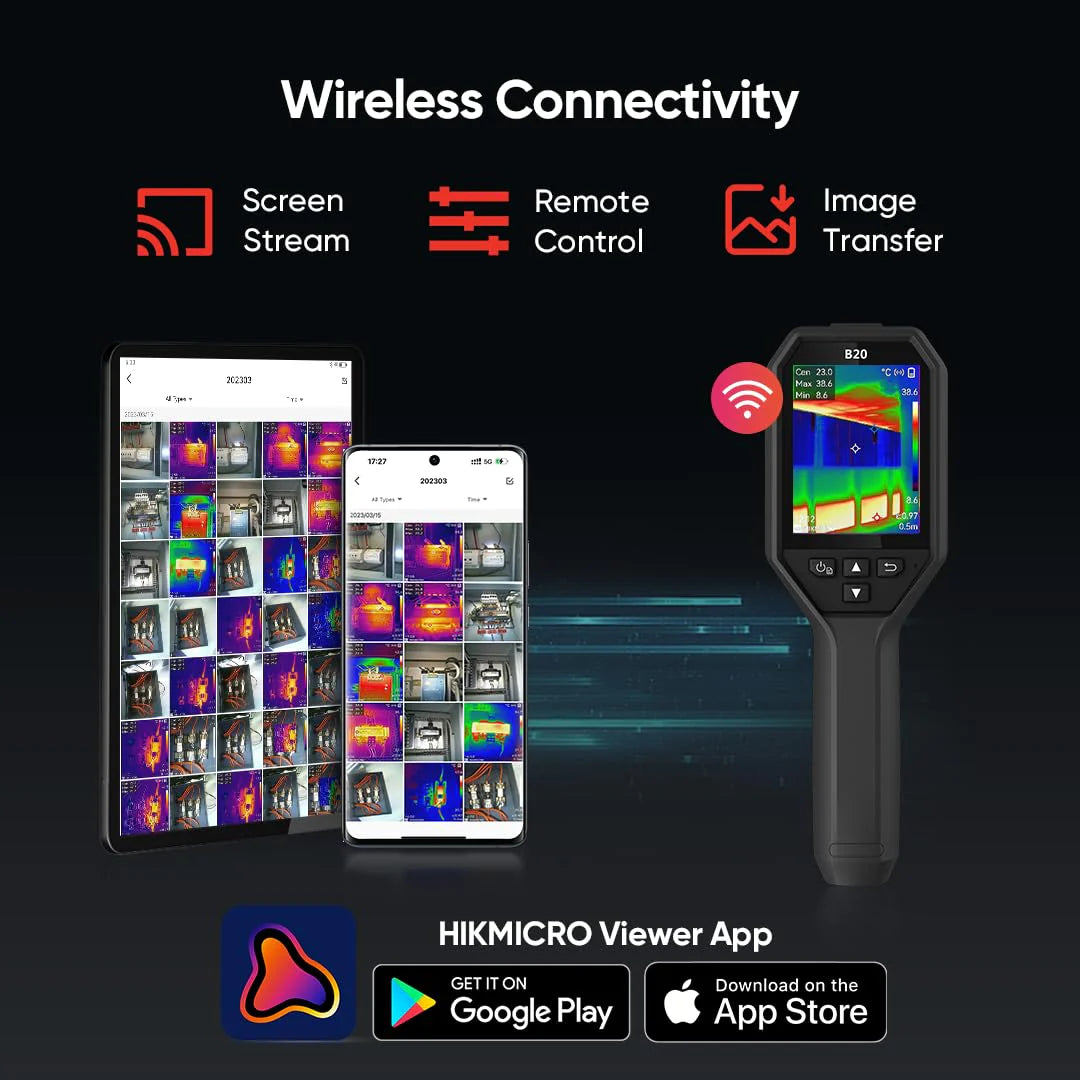

- — Built-in Wi-Fi for remote viewing and image transfer
- — LED work light for low-light inspections
✅ Advantages
- — Detects hidden issues like hot spots and cold air leakage
- — Compact and lightweight—easy to carry on the job
- — Accurate readings (±3.6°C/2°F or ±2%) for precise troubleshooting

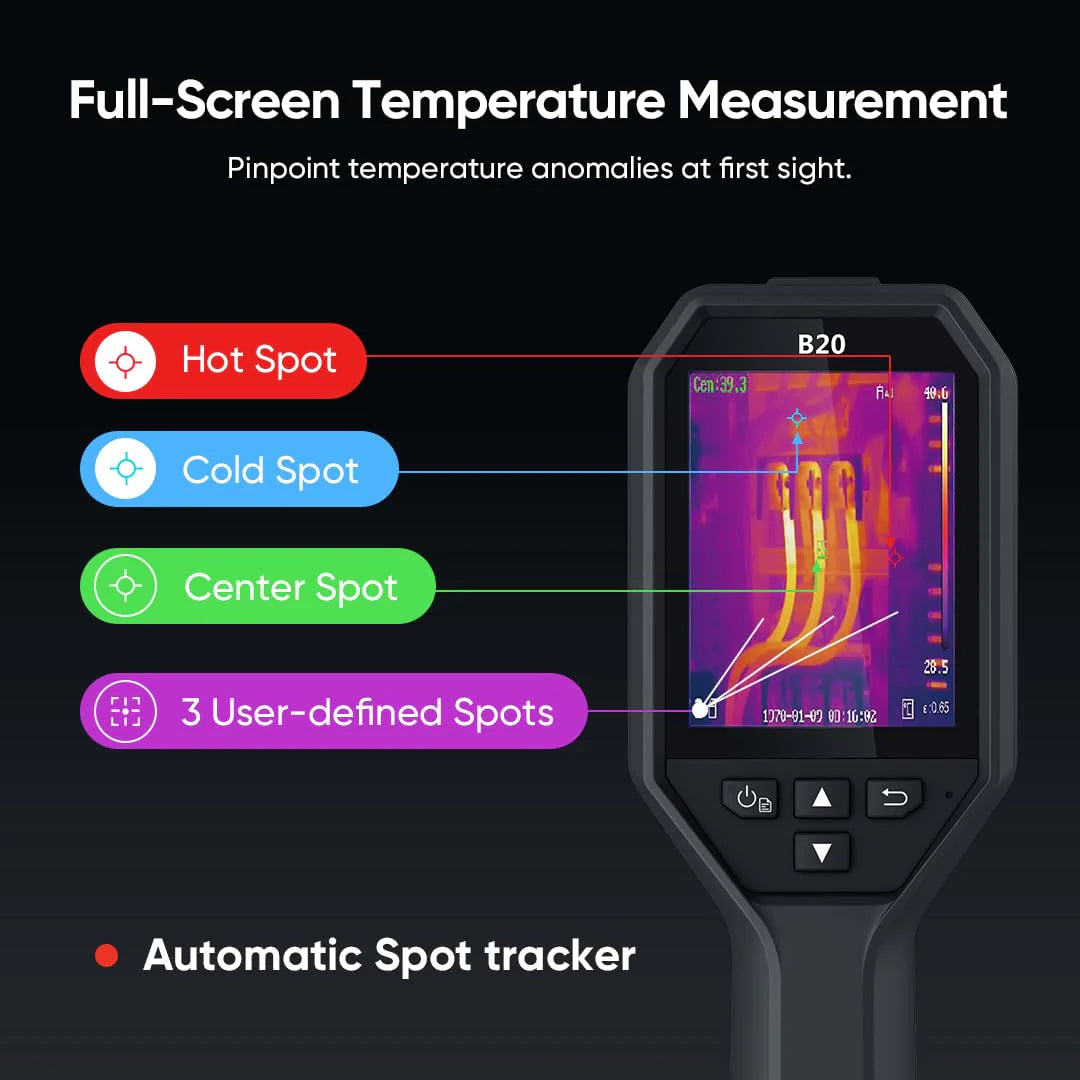

- — Supports center, hot spot, cold spot, and user-defined points

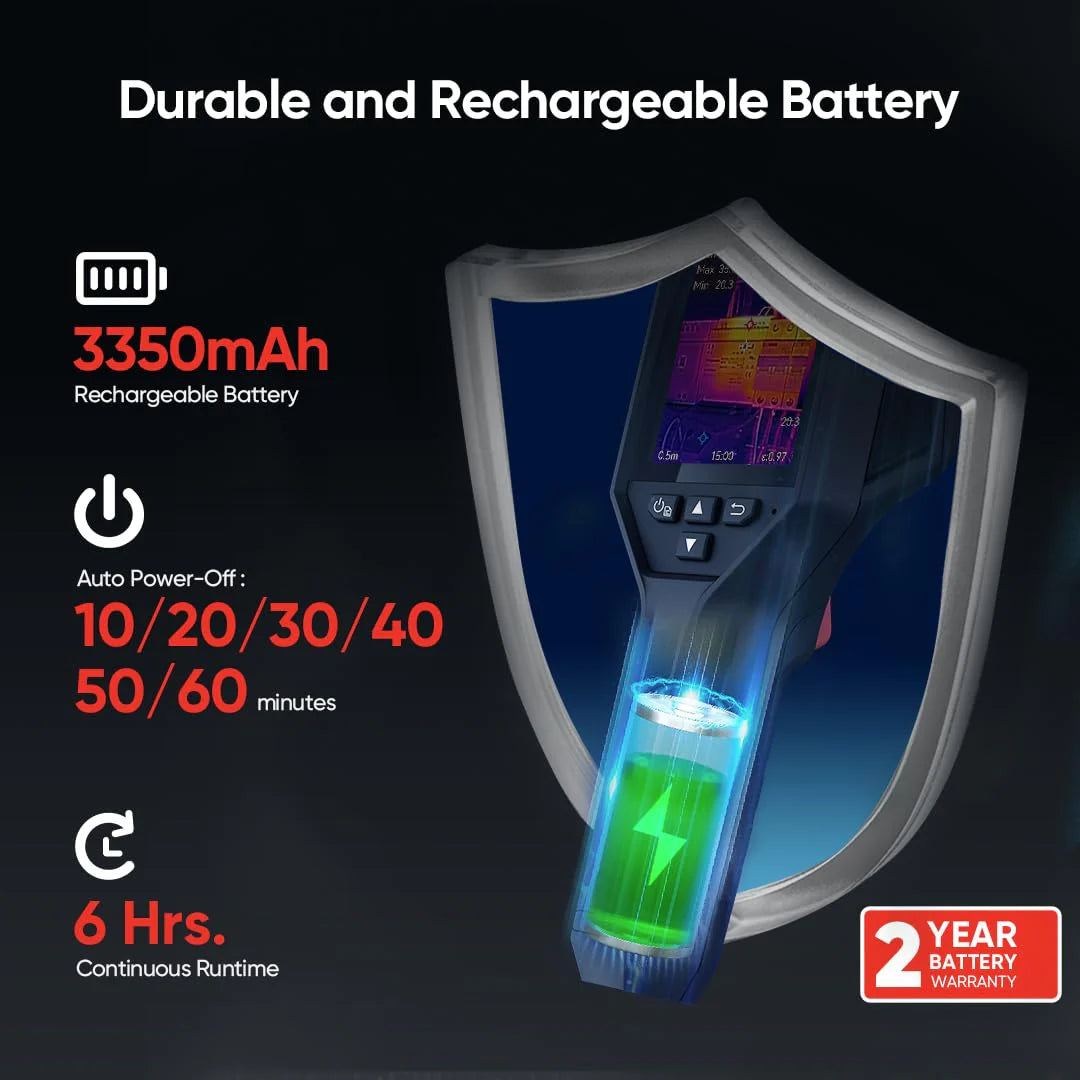

- — Up to 6 hours of battery life for all-day use
🎯 Benefits
- — Prevent equipment failures before they escalate
- — Improve building efficiency with thermal audits
- — Reduce inspection time with image-based diagnostics
- — Enhance client reports with real-time thermal visuals
🛠 How to Use
Power on the B20, select your temperature preset (center, hot, cold), and scan the target surface. Use Wi-Fi to transfer images or stream to a mobile device.
📅 When to Use
Perfect for HVAC troubleshooting, electrical panel inspections, moisture intrusion detection, and industrial preventative maintenance. Especially useful in high-efficiency building audits and tight turnaround diagnostics.
Act now—upgrade your inspections with thermal clarity and mobile connectivity.
📋 Technical Specs

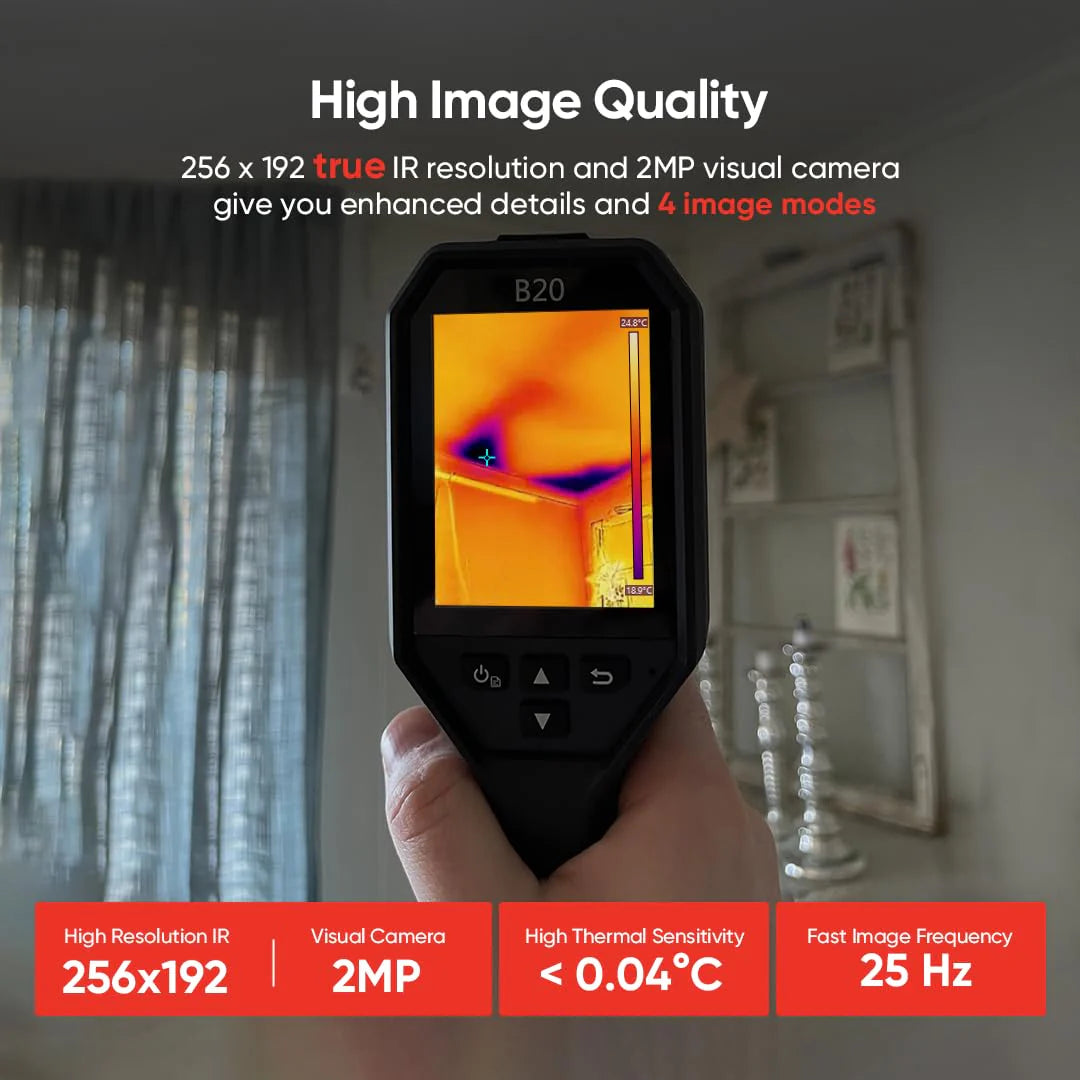

- — Thermal Resolution: 256×192 (49,152 pixels)
- — NETD Sensitivity: < 40mK
- — Temp Range: -4°F to 1022°F (-20°C to 550°C)
- — Accuracy: ±2°C/3.6°F or ±2%
- — Display: 3.2" LCD touchscreen
- — Image Frequency: 25Hz
- — Battery Life: Up to 6 hours
- — Connectivity: Wi-Fi enabled
- — Extras: LED work light, hot/cold spot measurement, image presets
- — Model: B20
