HIKMICRO B201 Macro Lens | Thermal Close-Up Precision for B-Series

Unlock Ultra-Fine Thermal Imaging with the B201 Macro Lens

The HIKMICRO B201 Macro Lens elevates your B-Series thermal camera by enabling high-precision close-up imaging. Designed to detect small-scale heat anomalies down to 500μm, this lens is a must-have for PCB inspections, electronics diagnostics, HVAC tuning, and more. With a 30mm focus distance, rugged construction, and seamless compatibility with B10, B20, B1L, and B2L cameras, it transforms your thermal toolkit into a detail-driven powerhouse.

🔧 Features

• — Captures temperature of targets as small as 500μm x 500μm
• — Close-up focus at just 30mm for detailed thermal diagnostics
• — High-resolution optics for superior image clarity and precision
• — Compatible with HIKMICRO B-Series cameras (B10, B20, B1L, B2L)
• — Durable, lightweight design for field-ready portability

✅ Advantages

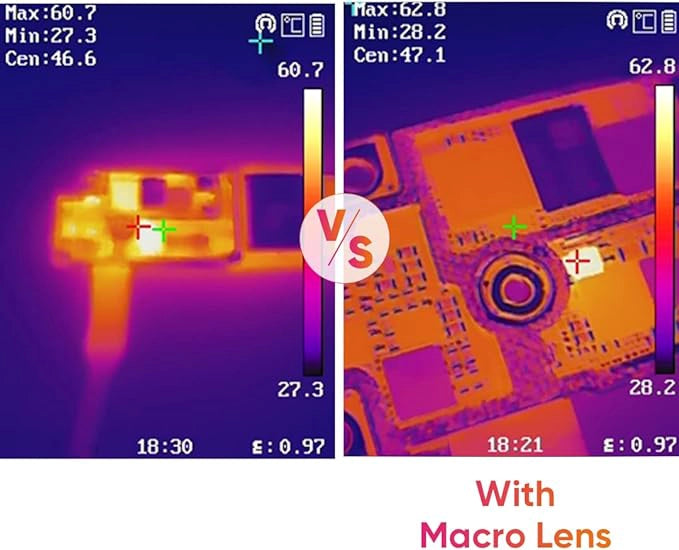

• — Provides magnified thermal views of tiny components
• — Fast setup with snap-on installation
• — Enhances thermal contrast in compact inspection zones
• — Accurate measurement across -4°F to 302°F (-20°C to 150°C) range

🎯 Benefits

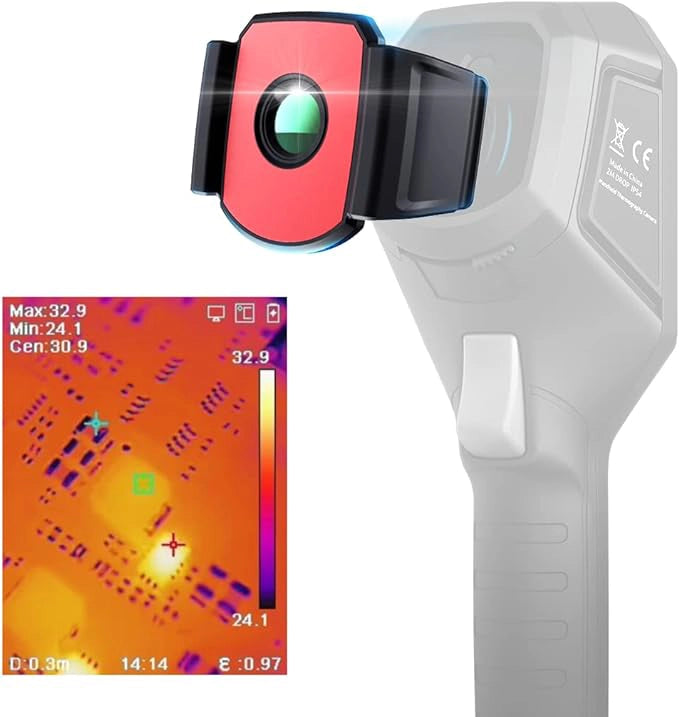

• — Diagnose PCB and electronics issues at the component level
• — Verify thermal efficiency in tight HVAC configurations
• — Detect micro hot spots before failure occurs
• — Reduce inspection time with clearer thermal visibility

🛠 How to Use

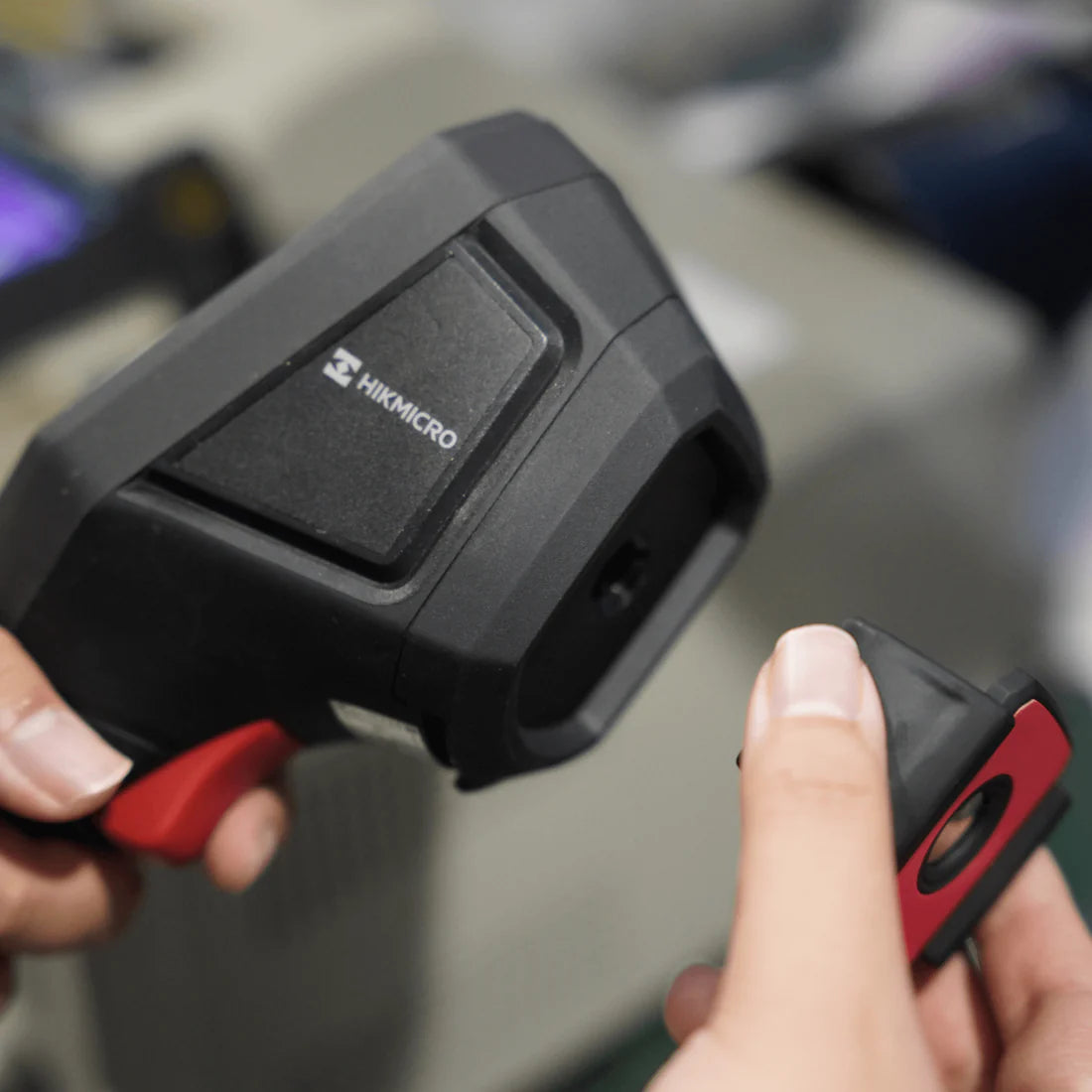

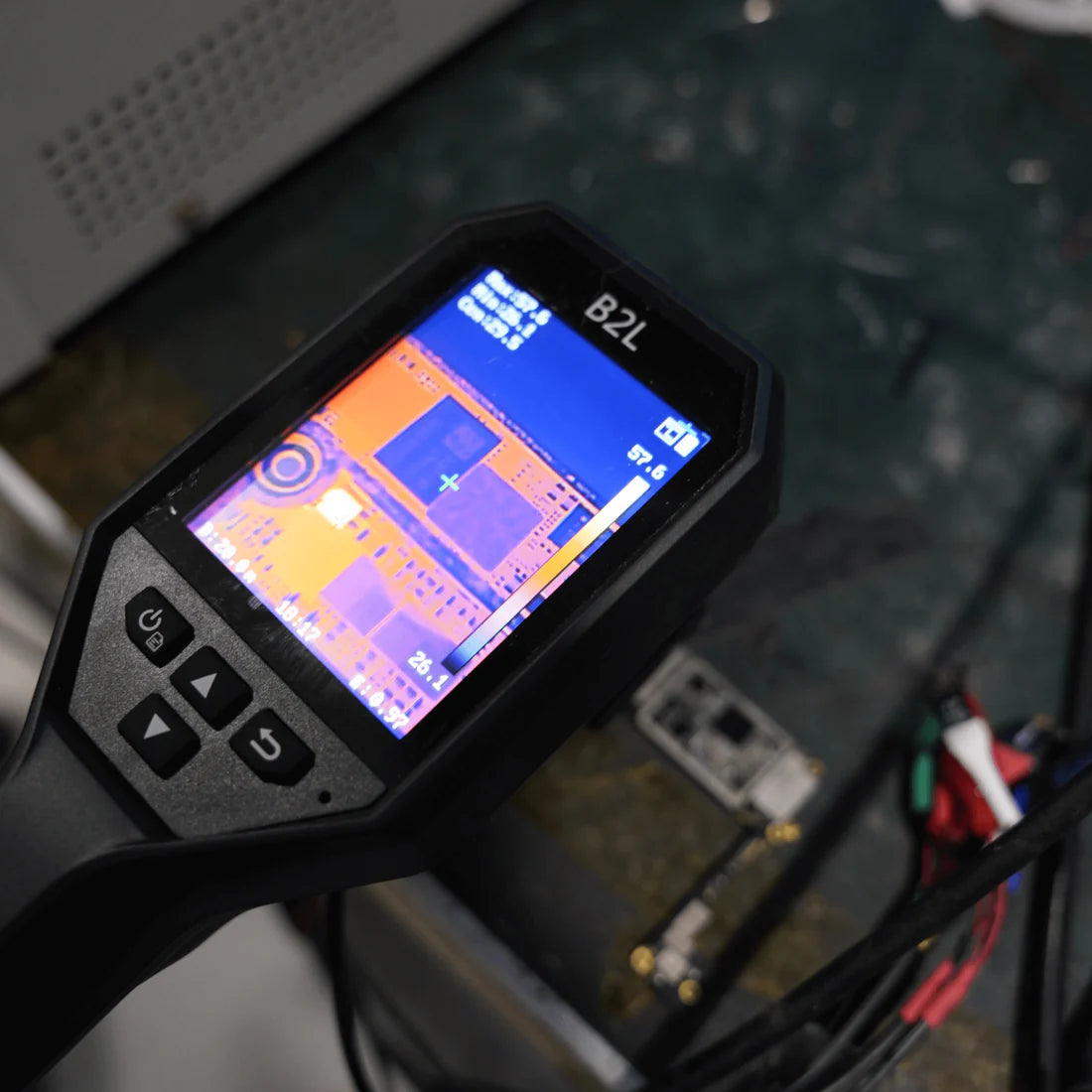

Align and attach the B201 macro lens directly onto your compatible HIKMICRO B-Series camera. Focus at approximately 30mm from the object. Use the touchscreen to fine-tune the image and measure thermal patterns in small or confined areas.

📅 When to Use

Ideal for electronics testing, board-level diagnostics, circuit evaluation, lab inspections, HVAC leak detection, and maintenance of tightly packed electrical systems where high-resolution thermal visibility is required.

In stock—upgrade your thermal inspections with unmatched close-up clarity today.

📋 Technical Specs

• — Model: HM-B201-MACRO
• — Compatibility: B10, B20, B1L, B2L
• — Magnification: 0.12x
• — Focal Length: 4.6 mm
• — FOV: 36° (H) x 28° (V)
• — IFOV (spatial resolution): 2.55 mrad
• — Focus Distance: 30mm
• — Object Temperature Range: -20°C to 150°C (-4°F to 302°F)
• — Weight: 0.02 lbs
• — Dimensions: 3.43" L x 0.99" W x 1.74" H
• — Construction: High-durability optical-grade plastic
